Quality of Connection

The performance and reliability of an optical connection is crucial for the long term performance of the optical networks.
It depends on 6 Major Factor

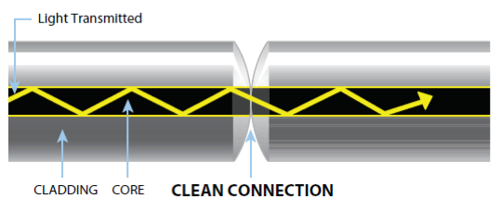

Clean Fiber Endface & Ferrule Surface

BTC has 3 stages of end-face inspection during their manufacturing process (100%)

- 400X Videoscopic Inspection after polishing.
  - Make sure that Fiber & Ferrule endface is 100% free of Scratches and pits
- 400X Videoscopic Checking before Insertion Loss/ BR Testing.
  - Make sure that no damage is causes during connector mating
- 100X Videoscopic Final Inspection
  - All the ferrule surface and fiber surface is checked

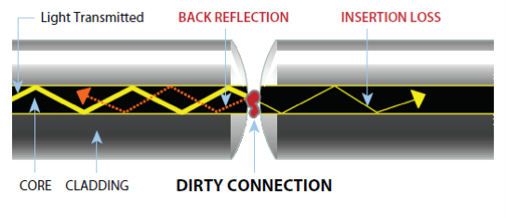

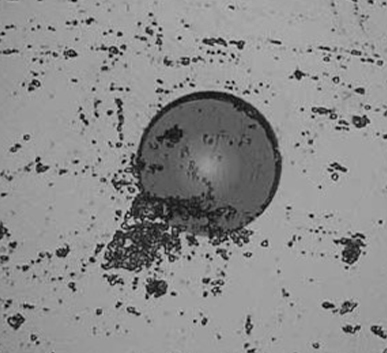

Contaminated Connector endface

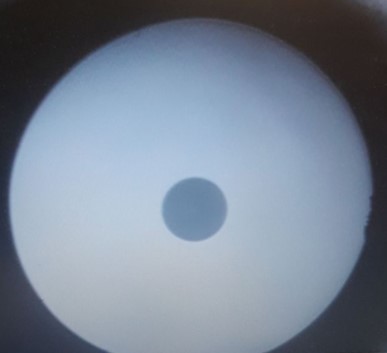

Connector endface leaving BTC factory

- BTC follows the following International Standards for its manufacturing.
  - IEC 61300-3-35 : Examinations and measurements – Visual inspection of fibre optic connectors and fibre-stub transceivers
  - IEC 61300-3-47 : Examinations and measurements – End face geometry of PC/APC spherically polished ferrules using interferometry
  - IEC-61300-3-4 : Basic test and measurement procedures– Attenuation
  - IEC-61300-3-6 : Basic test and measurement procedures– Back Reflection
BTC’s products are tested against the following reliability standards
- - IEC 61300-2-01 Vibration Test
  - IEC 61300-2-02 Mating Durability
  - IEC 61300-2-05 Torsion/ Twist Test
  - IEC 61300-2-44 Flexing of strain relief of fiber optic devices
  - IEC 61300-2-42 Static side load for connector
  - IEC 61300-2-50 Connector Proof Test
  - IEC 61300-2-51 Transmission with Applied Tensile Load Test
  - IEC 61300-2-18 Dry Heat (High Temperature Endurance)
  - IEC 61300-2-22 Temperature Change
  - IEC 61300-3-3 Monitoring Attenuation and Return Loss

BTC is your reliable supplier for all Fiber Optic equipment in the Middle East, Europe and Mexico.
